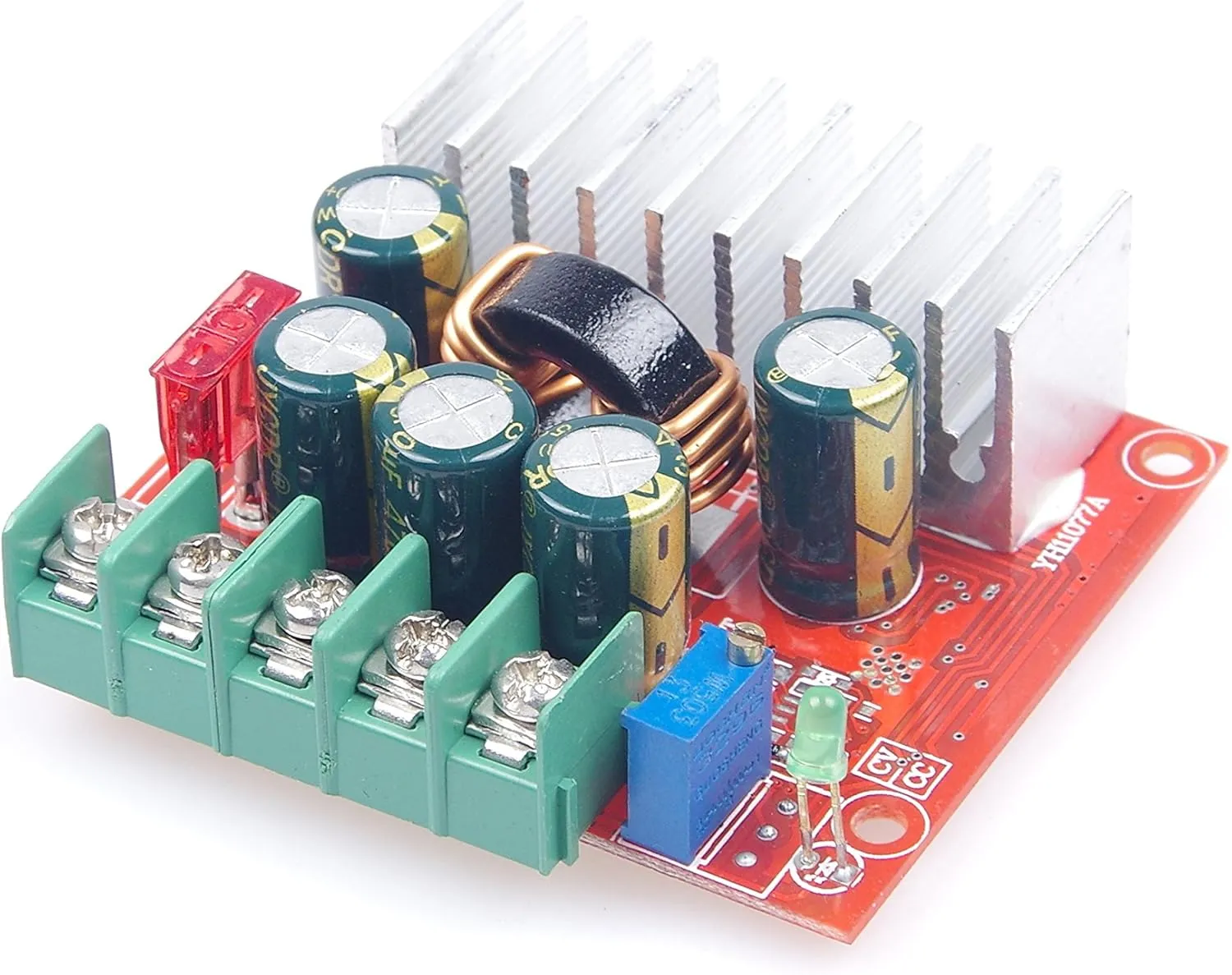

- Using TC3780 synchronous rectifier chip, high current low resistance MOS tube, iron silicon aluminum magnetic ring, thick copper enameled wire, so that the whole module fever lower.
- Input two 470uF / 35V high-frequency low-resistance electrolytic capacitors, the output of three 470uF / 35V low-resistance electrolysis, the output ripple lower.
- Replaceable fuse, double protection is more reliable. Onboard shutdown interface for easy control of output voltage. Thick aluminum heat sink directly with the MOS tube close, better heat dissipation, work more stable.
- Input voltage: 4-32V, input current: 8A (MAX) peak 10A (long time working natural cooling, recommended ≤6A).
- Output voltage: 0.8-32V continuously adjustable (default output 12V.), The output current: 8A (MAX) peak 10A（ long time work naturally cooling, recommended ≤6A).
Module name: 8A automatic lift buck module;
Modular nature: non-isolated synchronous rectification automatic buck module;
Input voltage: 4-32V;
Input current: 8A (MAX) peak 10A （ long time work naturally cooling, recommended ≤6A)
Static operating current: 5mA ;
Output voltage: 0.8-32V continuously adjustable (default output 12V.);
Output current: 8A (MAX) peak 10A （ long time work naturally cooling, recommended ≤6A)
Working temperature: -40 ~ 85 ℃;
Operating frequency: 200KHz;
Conversion efficiency: Max 98% (efficiency and input, output voltage, current, pressure related)
With overcurrent protection;
With short circuit protection (input 10A fuse) Dual short circuit protection, use more secure;
With Over-temperature protection(over-temperature automatically reduce the output voltage);
Input reverse polarity protection: None, (if necessary, in the input string into the diode);
Installation: 4 * 3mm screws
Wiring method: terminal output, (IN for the input, OUT for the output)
Module size: 60 * 51 * 20mm (L * W * H)
Package Inclued:
1*DC-DC 12V 24V 32V Automatic Buck Boost Module
