Product Description
1. Input voltage: 7V-25.5V(2-6S LIPO/ 6-16 cell Ni-Mh)
2.Output voltage: 5V/6A or 6V/6A
3.Current: 6A peak 8A (less than 15 seconds)
4.Weight: 14g
5. Size: 39 x 21 x 6mm (LxWxH)
Features:
Adopt the most advanced synchronous rectification switching power supply control chip design, with over-current and thermal protection, the chip at maximum efficiency as high as 93% The small size, light weight
Output current, continuous output current capacity of 6A peak output current capability of 8A, fully guaranteed equipment, demand for electricity
The output line to configure the filtering magnetic ring, greatly reduces the electromagnetic interference and ensure the receiver to work
Has a wide voltage range of 7V-25.5V can be within the normal work
Has a feature to prevent reverse input polarity, input power supply polarity mistake will not damage equipment
Has a working state indicator, when the output to normal when the indicator light
Package included:

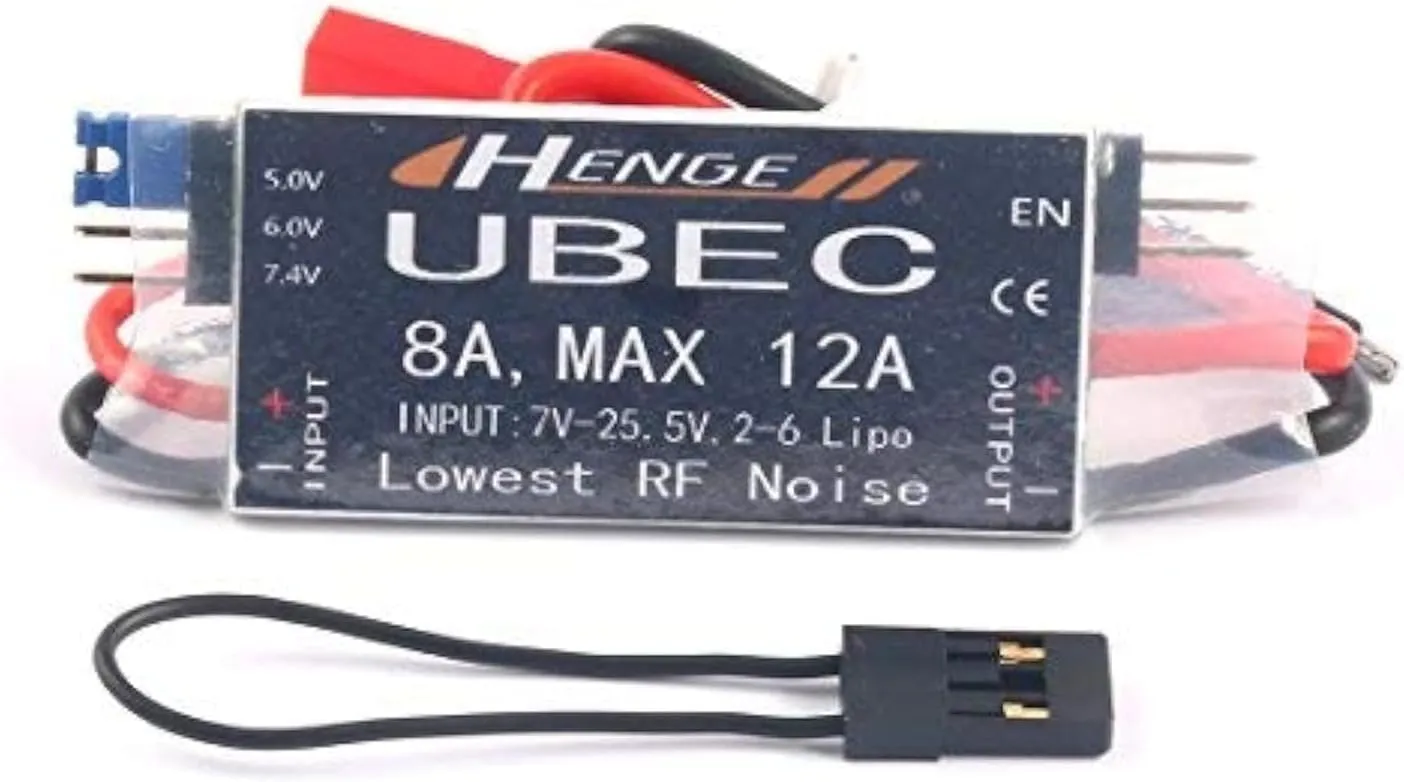

1x HENGE 8A UBEC
