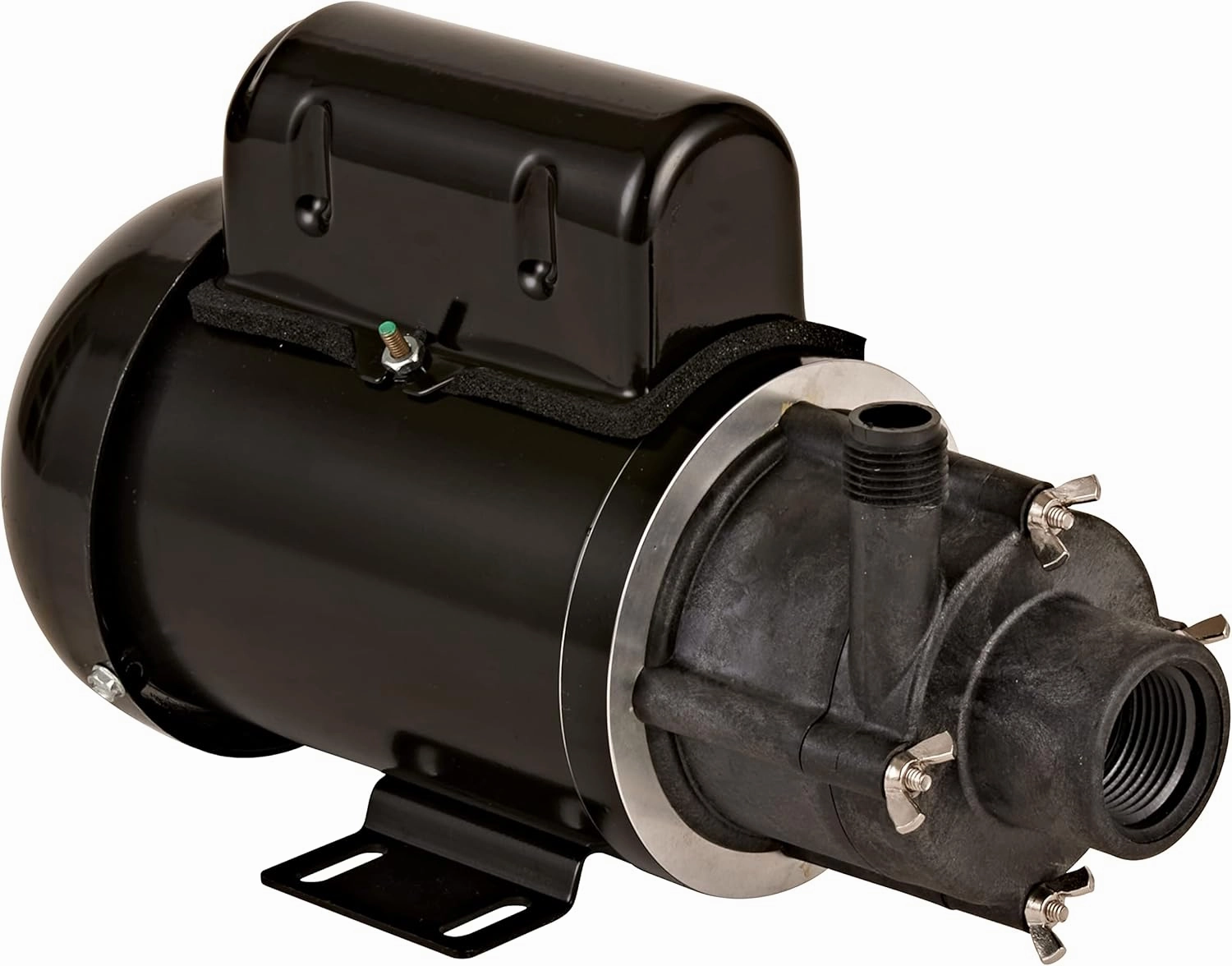

Name: Little Giant TE-5-MD-HC 115/230 Volt, 1/8 HP, 1200 GPH Non-Submersible Highly Corrosive Chemical Magnetic Drive Pump with 6-Ft. Cord (Plug-less), Black, 584604
SKU: 247275

APPLICATIONS: designed for in-line, non-submersible use to circulate highly corrosive acids, alkalis, solvents, brine, plating and sterile solutions and other highly corrosive chemicals/solutions
EXCELLENT CHEMICAL RESISTANCE: motor housing, impeller and volute are made of polyphenylene sulfide (PPS); motor shaft and thrust washers are ceramic, FKM O-ring seal
LIMITATIONS: 1.1 specific gravity; maximum liquid temperature 200°F; this pump does not come with a plug
MOTOR SPECIFICATIONS: 1/8 HP, 115/230 Volts; 50/60 Hz; 3.0 Amps at 60 Hz at 115 Volts; 1.4 Amps at 60 Hz at 230 Volts; thermally protected, TEFC, capacitor start; 6-ft. lead wires
PUMP SPECIFICATIONS: 1200 GPH at 1-ft. lift; 1-inch FNPT suction; 1/2-inch MNPT discharge; 29.3-ft. shutoff; 12.7 PSI; fluid temperature to 200 °F; specific gravity to 1.1

The Little Giant 115/230 Volt, 1/3 HP TE-5-MD-HC non-submersible magnetic drive pump is used to circulate highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other highly corrosive chemicals and solutions. Its motor housing, impeller, and volute are made of polyphenylene sulfide PPS for excellent chemical resistance. This pump utilizes pure carbon bushing to enable the pump to run dry for up to 8 hours at a time. This pump delivers up to 1200 GPH at 1-ft. lift. This pump comes equipped with a 6-ft. plug-less cord. It does not plug into a standard outlet.

Little Giant TE-5-MD-HC 115/230 Volt, 1/8 HP, 1200 GPH Non-Submersible Highly Corrosive Chemical Magnetic Drive Pump with 6-Ft. Cord (Plug-less), Black, 584604

Product Details
