- Adopt the most advanced synchronous rectification switching power supply control chip design, with over-current and thermal protection, the chip at maximum efficiency as high as 93%.
- Continuous output current capacity of 4A peak output current capability of 6A, fully guaranteed equipment, demand for electricity.
- The output line to configure the filtering magnetic ring, greatly reduces the electromagnetic interference and ensure the receiver to work.
- Has a feature to prevent reverse input polarity, input power supply polarity mistake will not damage equipment.
- Has a working state indicator, when the output to normal when the indicator light.
Specifications:
Output: 5V/4A or 6V/4A (may be too jumper cap switch)
Input: 7-25.5V (2-6 string of lithium battery pack or 6-16 NiMH / Ni-Cd batteries)
Continuous output current: 4A
Peak Output Current: 6A (duration of less than 15 seconds)
Ripple: less than 45mVp p (@ 2A/12V)
Size: 35mm 20mm 5.8mm (L W H)
Weight: 14g (including wire and the magnetic ring)
Features:
Adopt the most advanced synchronous rectification switching power supply control chip design, with over-current and thermal protection, the chip at maximum efficiency as high as 93 Percent.
The small size, light weight; Output current, continuous output current capacity of 4A peak output current capability of 6A, fully equipment, demand for electricity.
The output line to configure the filtering magnetic ring, greatly reduces the electromagnetic interference and ensure the receiver to work.
Has a wide voltage range of 7V-25.5V can be within the normal work.
Has a feature to prevent reverse input polarity, input power supply polarity mistake will not damage equipment.
Has a working state indicator, when the output to normal when the indicator light.
Package Includes:

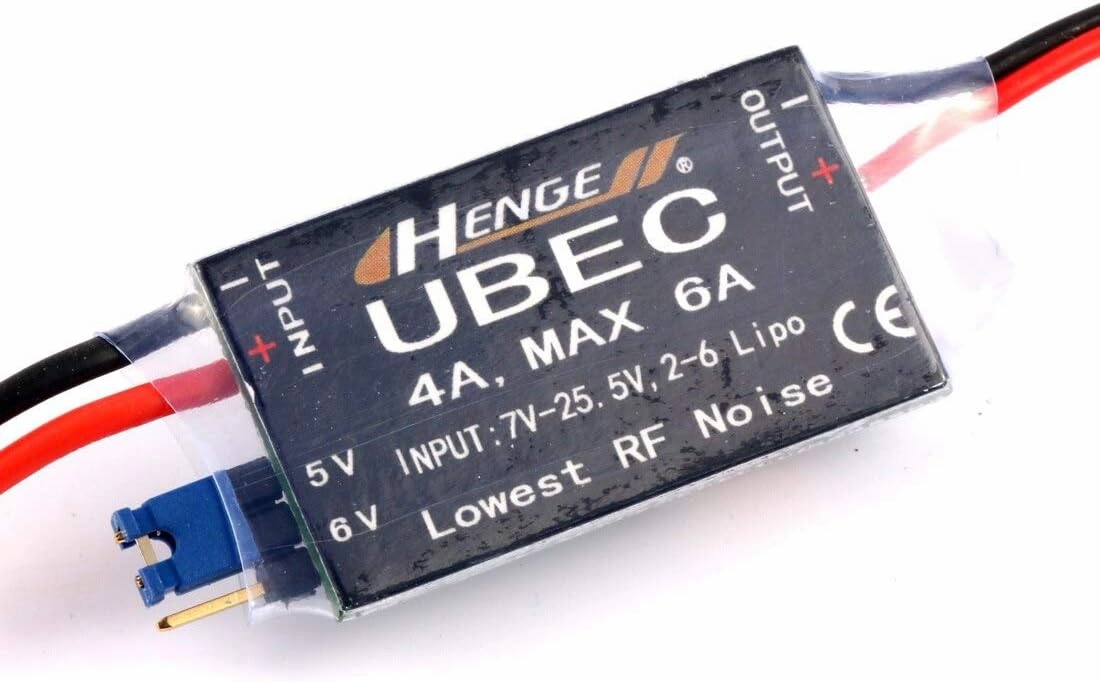

1x4A UBEC
